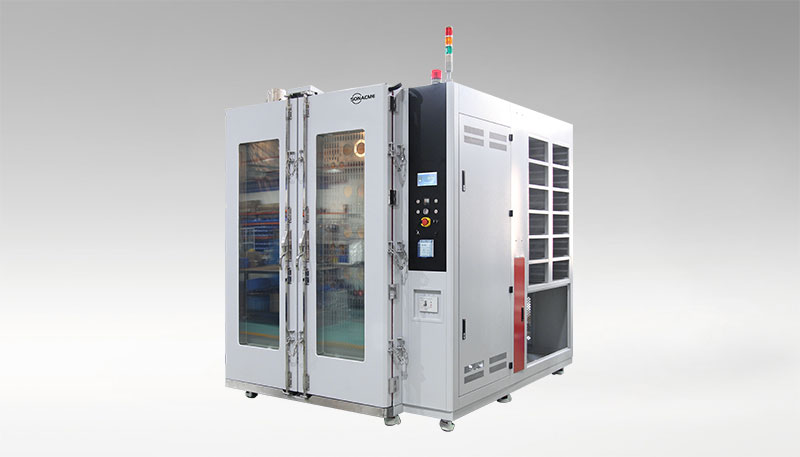

Temperature Test Chamber
Temperature Test Chamber
Temperature Test Chamber

Temperature Testing

Application Area

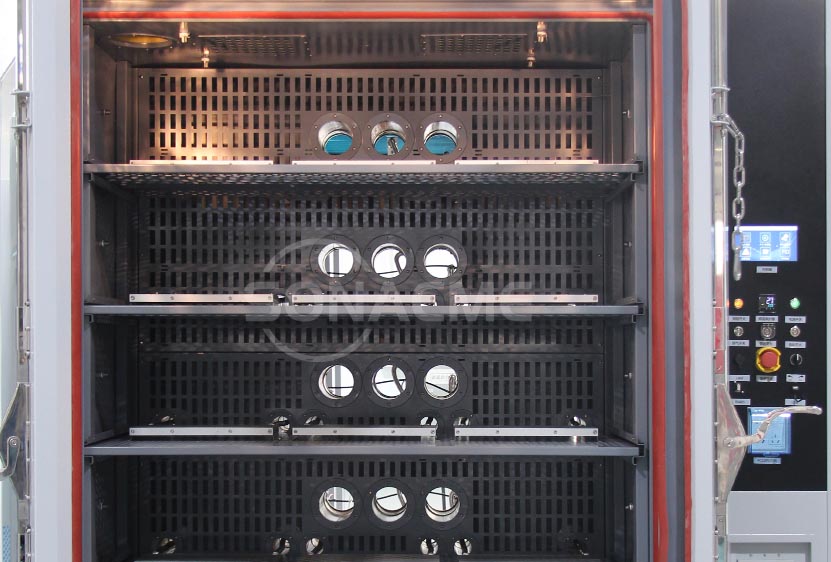

SONACME temperature test chamber, customized expansion force acquisition module placement device.

It is used to simulate products under the combined conditions of temperature and humidity in climate environment (high and low temperature operation, storage, temperature cycle, high temperature and high humidity, low temperature and low humidity, dew test, etc.). It is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, all kinds of electronic components in high and low temperature to test its various performance indicators.

Structural Features

Temperature range: -20℃~100℃

External dimensions: W2350mmD1750mm*H2100mm

Internal dimensions: W1400mm*D650mm*H1800mm

Volume: 1638L

Temperature Test Chamber
Temperature Test Chamber

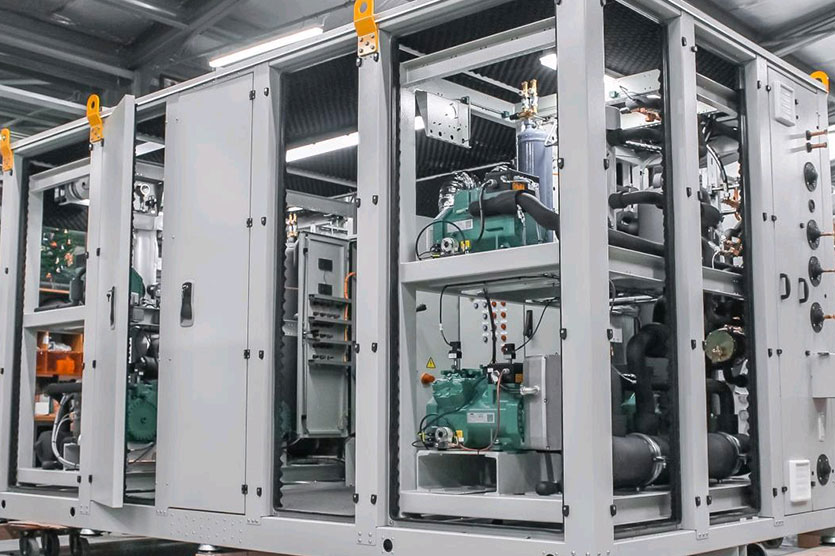

Refrigeration System

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).

Shock absorption and noise reduction process,slow down the vibration, protect the compressor.

The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.

It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.

MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

Temperature Test Chamber

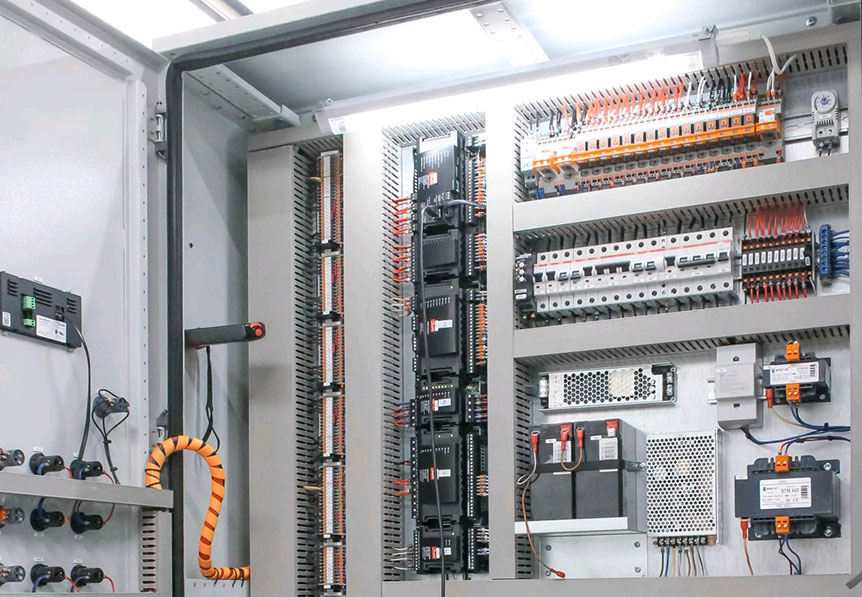

Electrical System

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Temperature Test Chamber

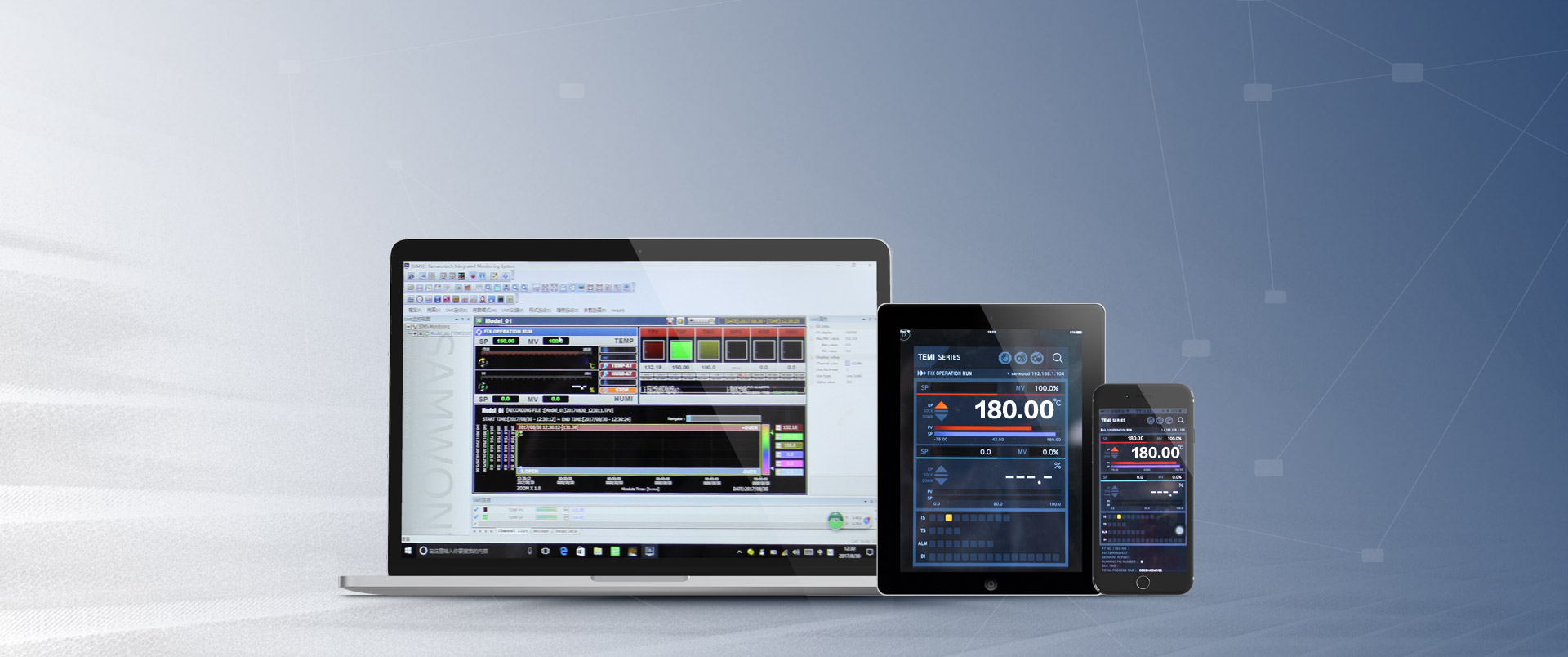

We Apply The Controller Developed By SONACME
