Hypoxic Environmental (Full Climate) Chambers

Sonacme Technology designs and builds sports environment rooms for customers who need a unique environment for sports science and human performance applications. Each cabin is specially built for stimulating various environmental parameters in order to achieve complete and ideal weather conditions in the environmental cabin.

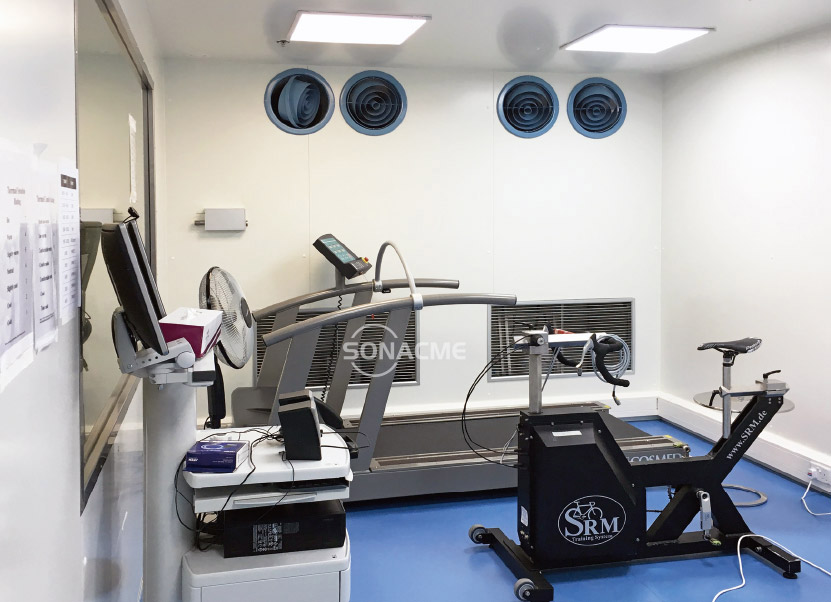

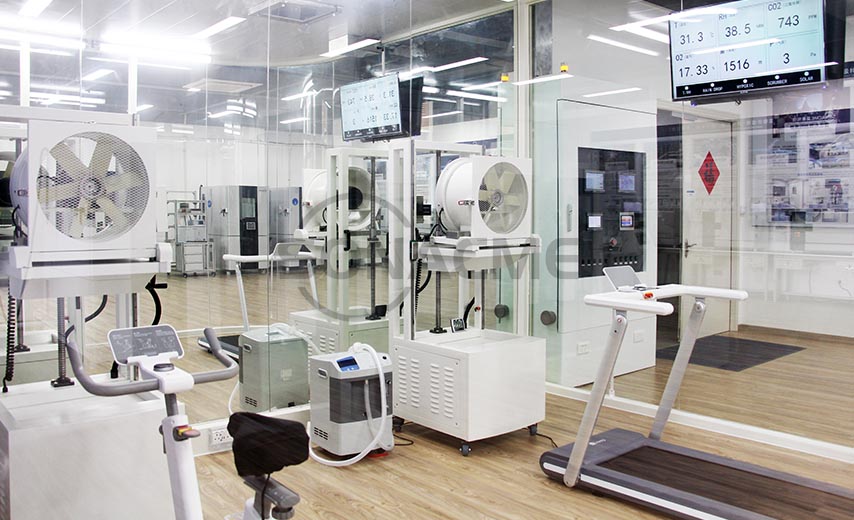

The walk-in environmental training room can be used in conjunction with a hypoxic system, a carbon dioxide adsorber, a solar illumination system, and a wind simulation system. It can adjust natural phenomena such as different temperature, humidity, sunlight, wind power, carbon dioxide, and plateau hypoxia environment in the same room.

Designed for research, military training centers, universities, sports teams and climbers.

Technical Characteristics

Indoor adjustable temperature range: (-20℃ to 50℃), control accuracy (±0.5℃), balance degree (±2℃).

Indoor adjustable humidity range: (20% to 98%RH), control accuracy (±1%), balance (±3%).

Indoor adjustable oxygen range: (altitude 0-7000m), control accuracy (±100m), equilibrium degree (±200m) indoor carbon dioxide concentration: 　 control the carbon dioxide exhaled by athletes to <2000ppm.

Adjustable range of wind system: (wind speed 0-15m/s), electric lift, adjustable up and down angle.

Solar illuminance system range: (200-800W/m2).

Configuration Characteristics

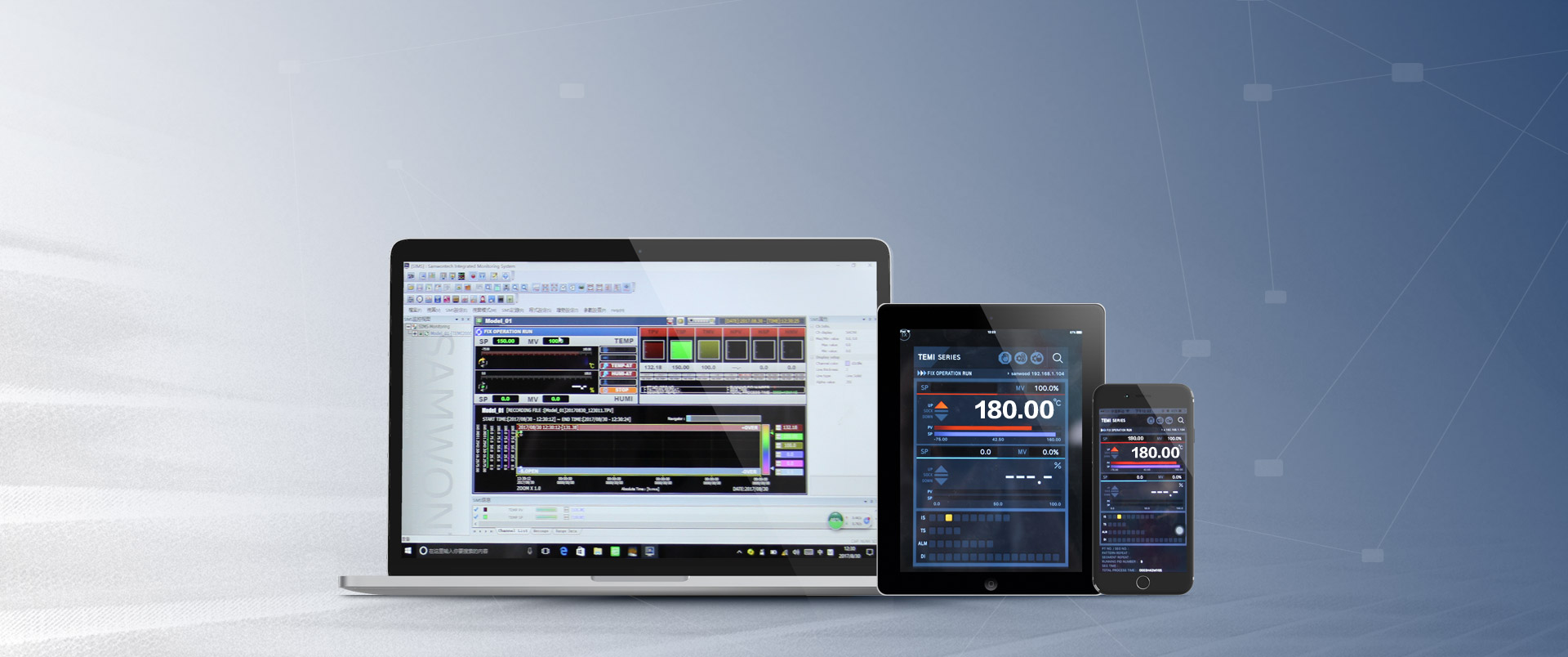

Color touch screen, PLC control, each system can be preset program, USB data storage record temperature, humidity, oxygen, carbon dioxide integrated recorder.

Progressive security alert system.

Power failure emergency lighting, escape exit indicator.

Provide power waterproof switch socket.

Indoor and outdoor walkie talkie.

Indoor and outdoor emergency stop button.

Indoor and outdoor data synchronization display system.

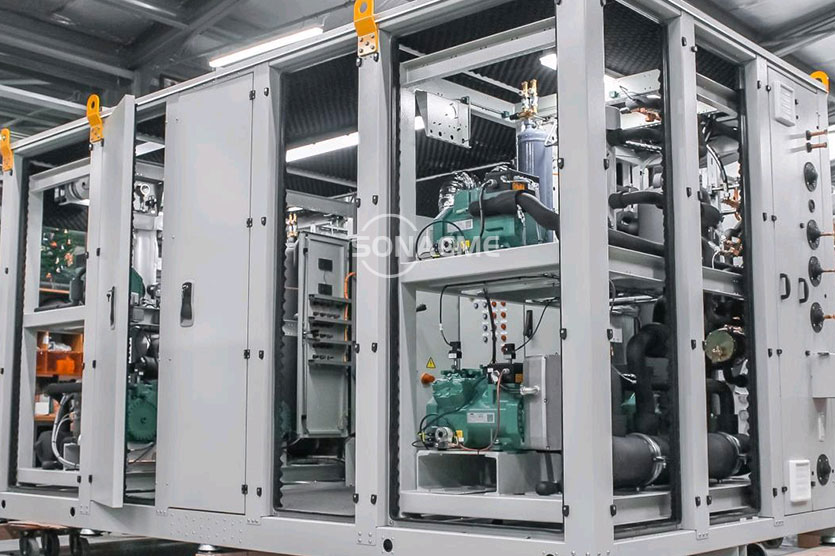

Refrigeration System

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).

Shock absorption and noise reduction process,slow down the vibration, protect the compressor.

The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.

It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.

MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

Electrical System

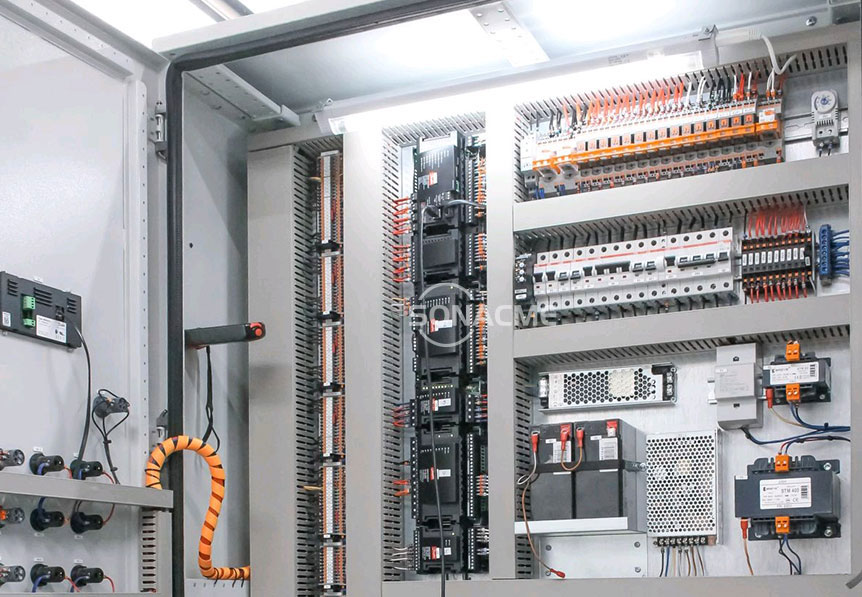

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.
