Battery Safety Testing

Application Area

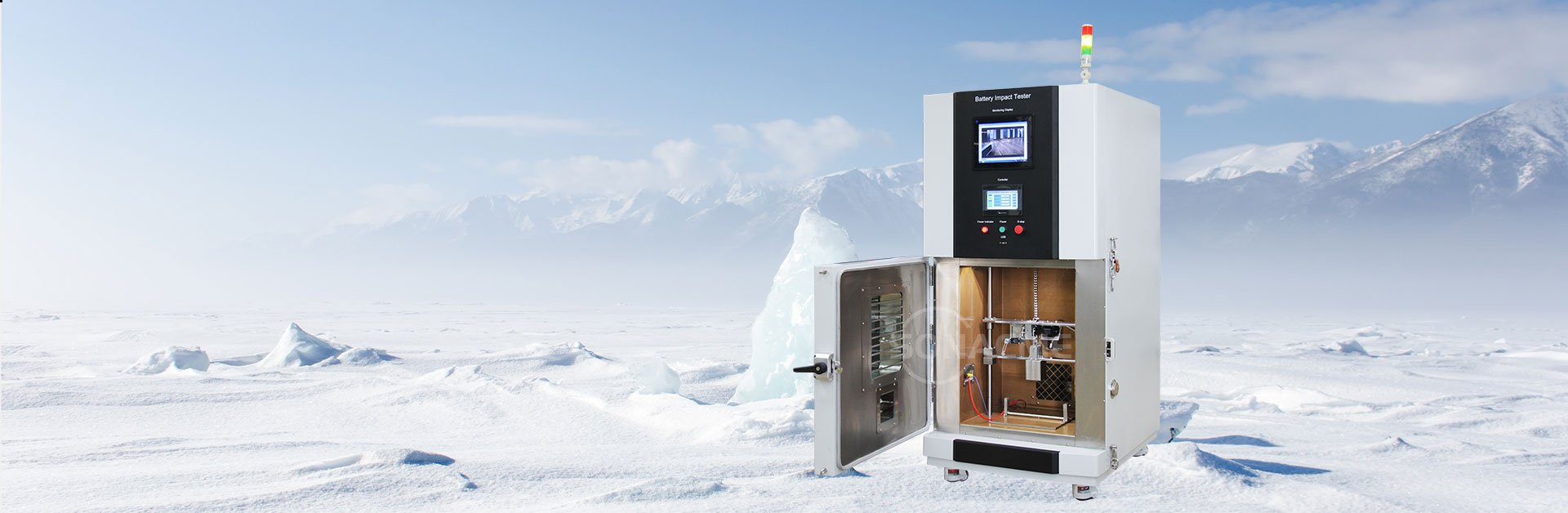

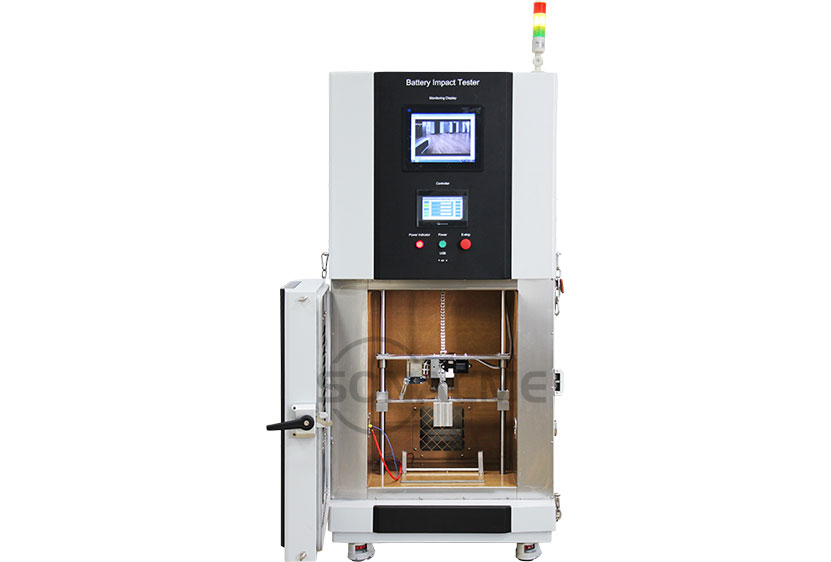

Sonacme technology's battery impact tester tests the safety of the battery through different weights, different heights and different impact areas. After a series of tests on this battery impact tester, the battery must not have flame or explosion. This device is a kind of battery testing equipment popular among battery manufacturers.

Test requirements: •UL1642 •UN38.3

Battery Impact Tester

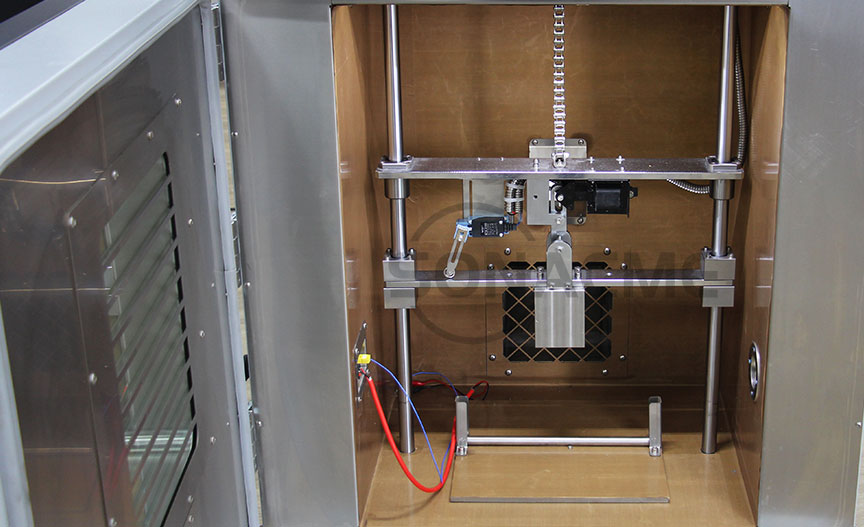

Structural Features

The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

Battery Impact Tester

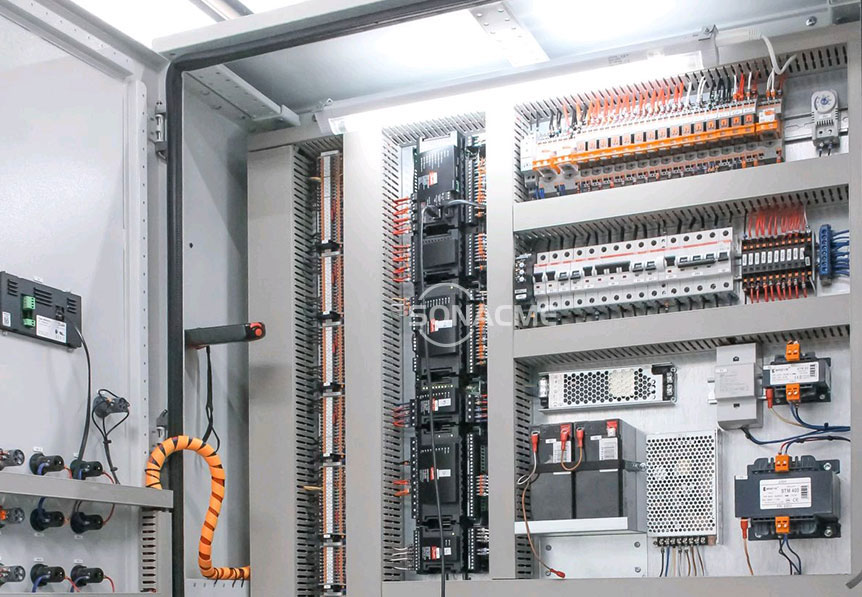

Electrical System

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Battery Impact Tester

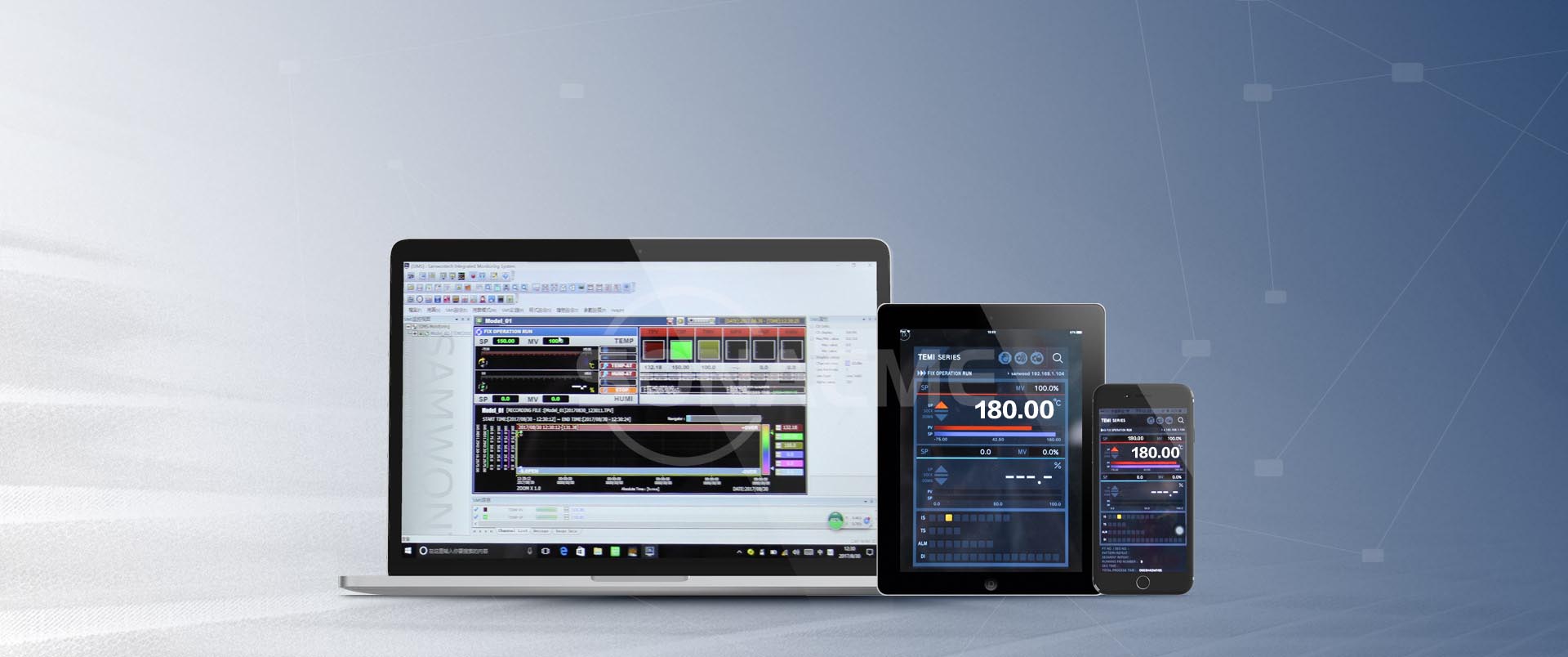

We Apply The Controller Developed By SONACME
