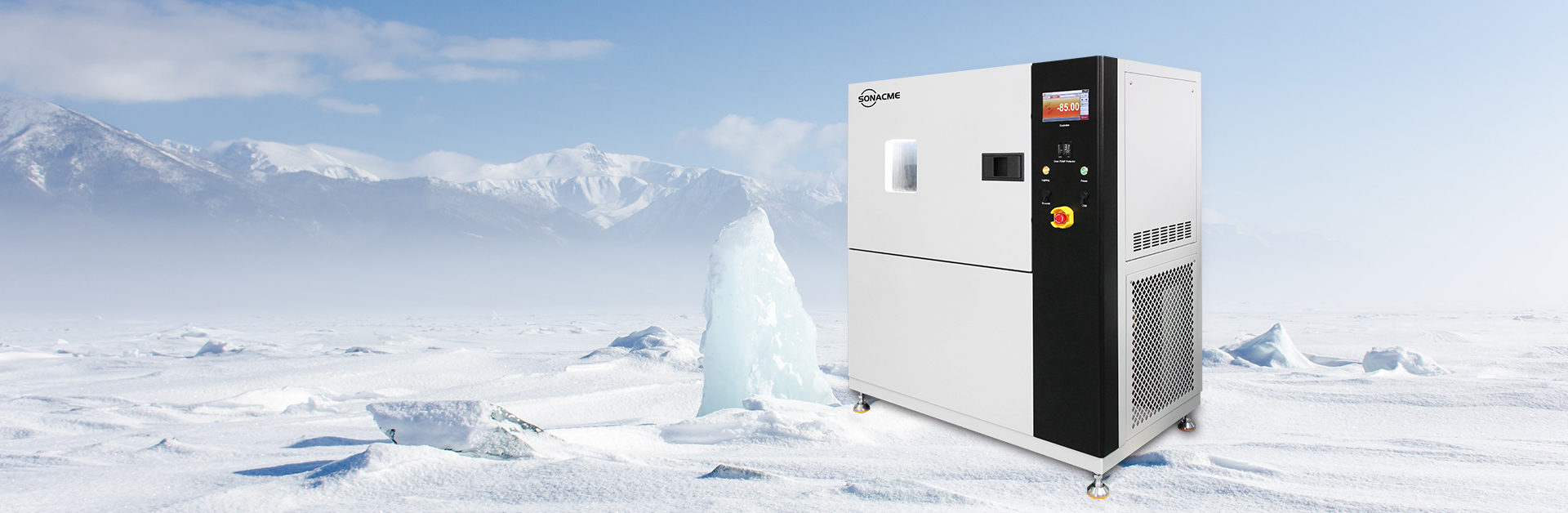

Ultra-low temperature chamber reach to -85°C

Application Area

The Ultra-low temperature chamber allow you to control the temperature inside the chamber with temperature -85℃~180℃.

Seasonal Differences, Different Climate Zones-Your Products Must Be Able To Withstand Various Temperatures During Manufacturing, Transportation, Storage And Use. The Environmental Test Chamber Of Sonacme Technology Will Help You To Test The Effects Of Temperature And Humidity On The Characteristics, Functions And Service Life Of Your Products Under Accelerated Conditions.

Wide temperature range

There are two models of SONACME Technology ultra-low temperature test chamber: the temperature range is - 85 ° C to+180 ° C and the temperature range is - 75 ° C to+180 ° C. They are widely used, including temperature characteristic test and low-temperature storage test.
Ultra Low Temperature Chamber
Ultra Low Temperature Chamber

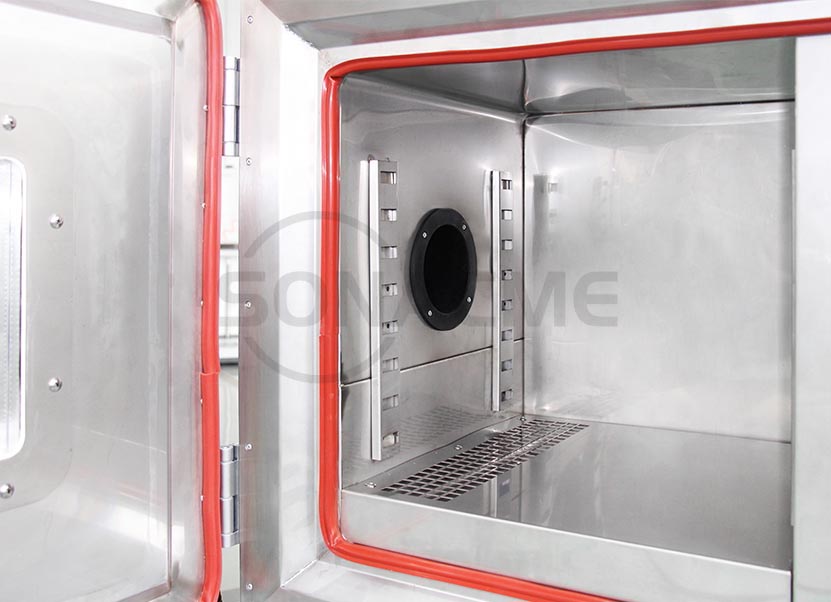

Structural Features

The inner chamber material is made of SUS#304 stainless steel with 1.0mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

Ultra Low Temperature Chamber

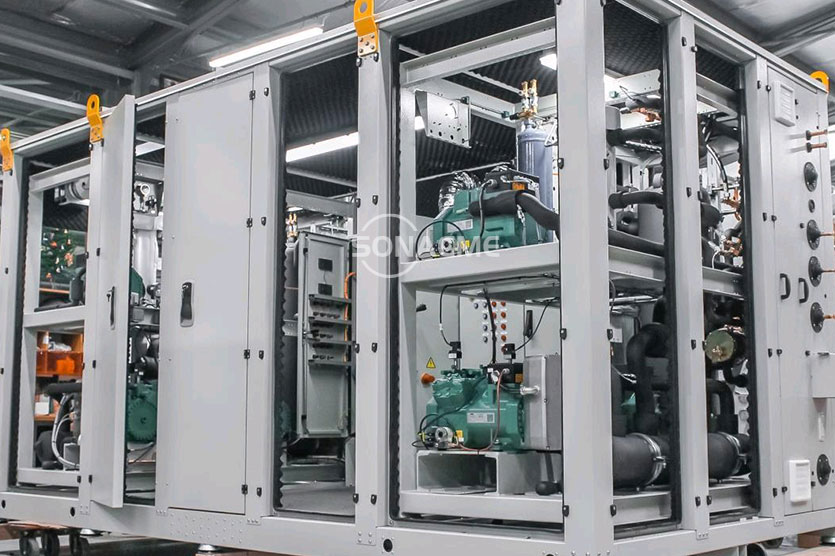

Refrigeration System

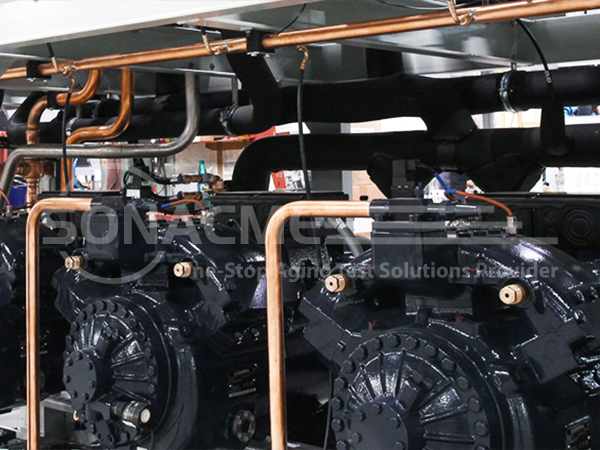

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).

Shock absorption and noise reduction process,slow down the vibration, protect the compressor.

The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.

It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.

MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

Ultra Low Temperature Chamber

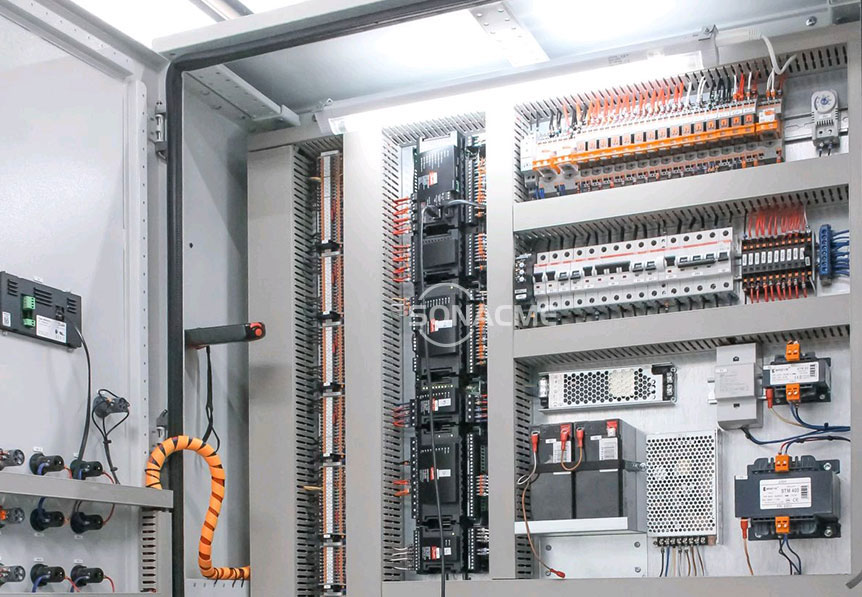

Electrical System

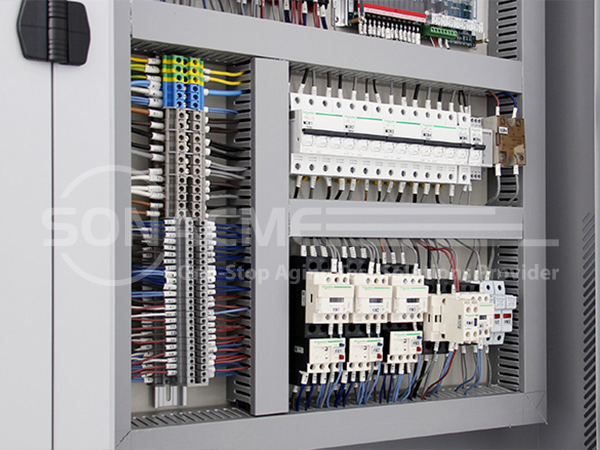

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Ultra Low Temperature Chamber

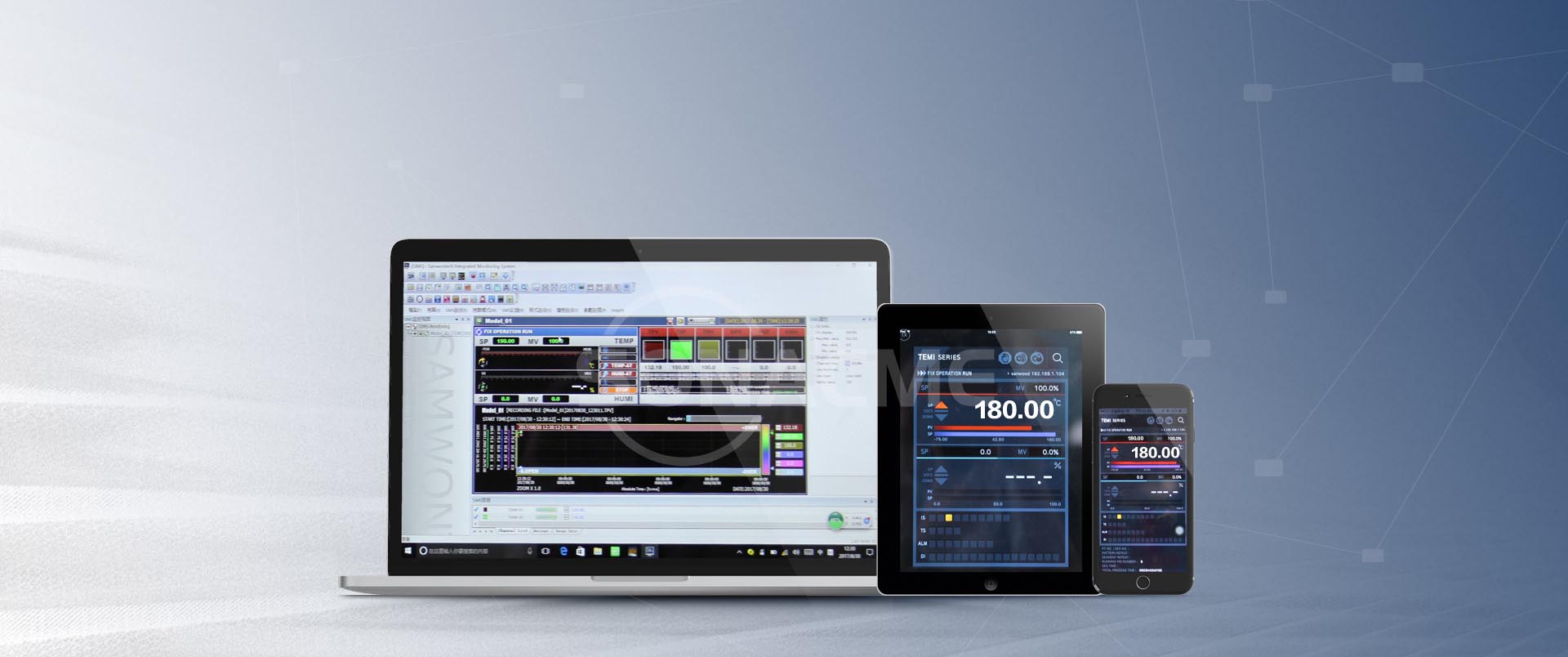

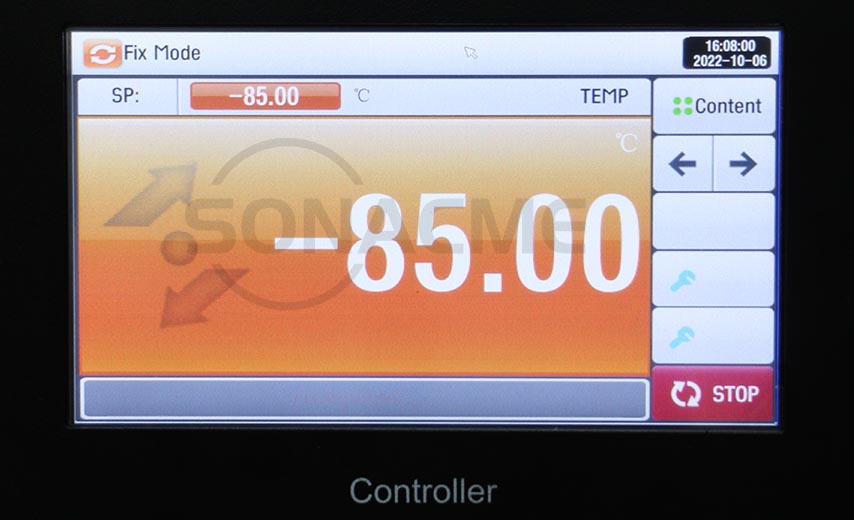

We Apply The Controller Developed By SONACME


Internal dimensions  W×H×Dmm400*400*400
External dimensions   W×H×Dmm1090*1318*630
Temperature range -75~+100℃ (+150℃/+180℃)  -85~+100℃ (+150℃/+180℃)
Temperature fluctuation±0.5°C
Temperature uniformity2.0°C
Temperature change rateHeating rate:5.0°C/min     Cooling time:2.0°C/min
Noise level68dB
