Xenon arc Weathering Testing

Application area

SONACME Xenon test chamber equipped with three xenon lamps imported from Amercia and daylight filter,can meet with all standards'requirements.

The Xenon Test Chamber can hold 27 pieces samples, not only has spray function ,but also can control the relative humidity of working room.

Operator can set all required test parameters (Irradiance, test time, BPT etc)through the touch screen, and can check its running status at any time. All running parameters can be exported to computer through the USB interface.

Main Performance Characteristics

Three xenon lamps imported from America can offer higer irradiance energy, meet with all test strandards’ requirements.

Can set and control automatically the relative humidity of working room.

The test procedures can be programmed freely; and up to 16 predetermined procedures can be saved in one time. Every procedure includes up to 10 segments setting data.

Can set the cumulative energy (total irradiance energy)obtained by sample to finish a test procedure.

With spray function, can set spray time and spray interval time.

Irradiance energy can be accurately controlled. The "Closed-Loop" control system can automatically compensate the change of light intensity caused by ageing or other factors.

Xenon Test Chamber
Xenon Test Chamber

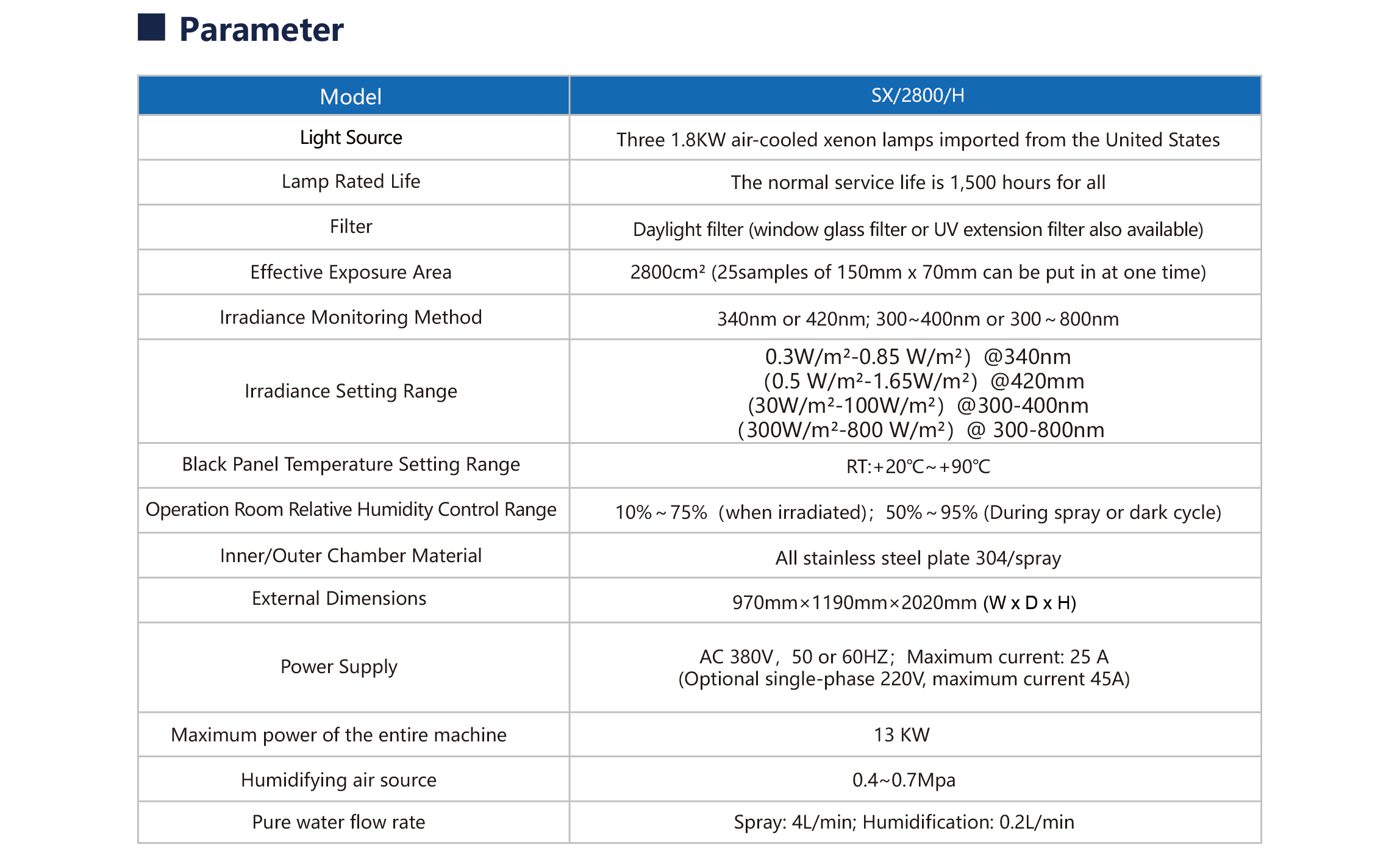

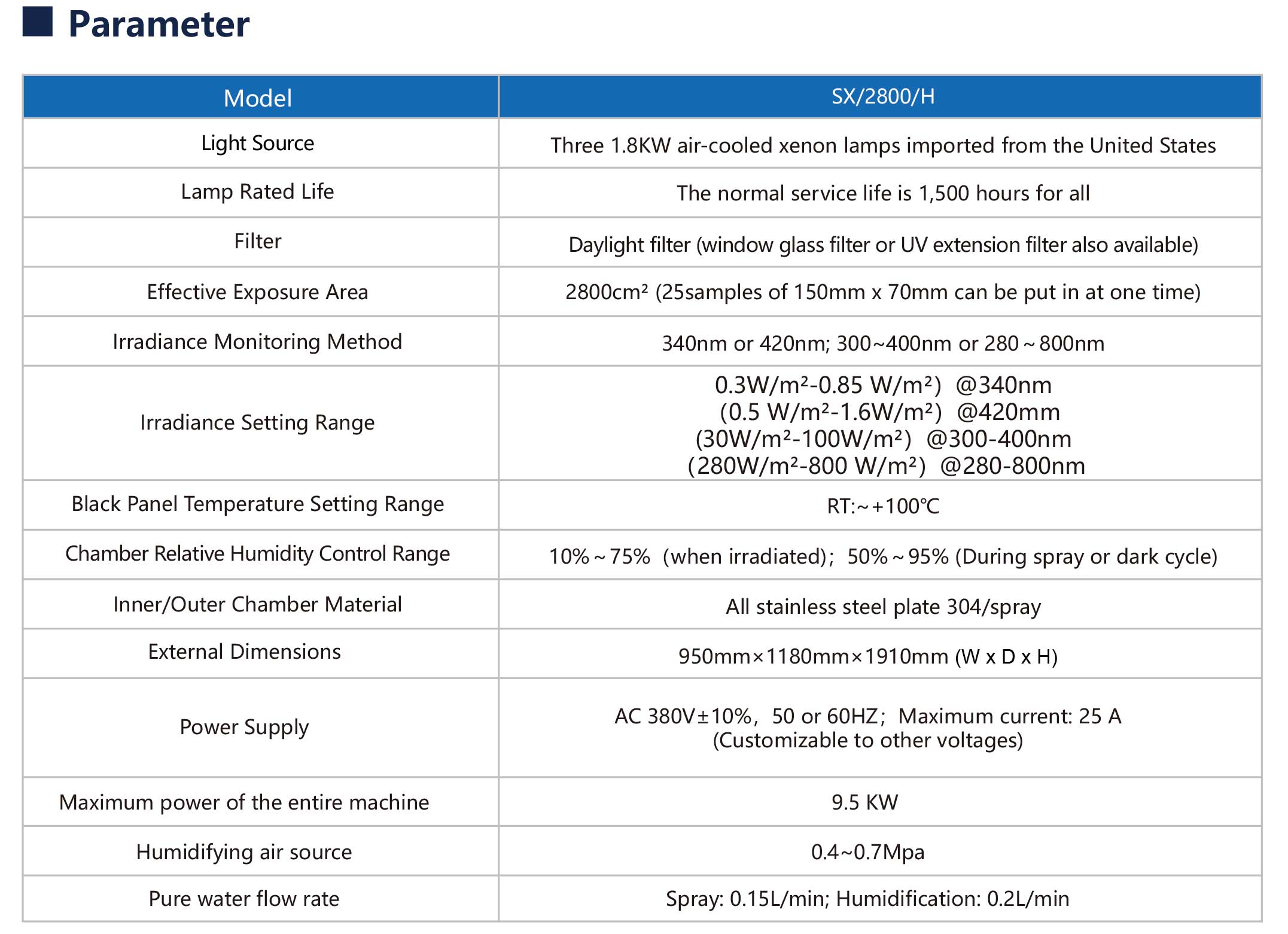

Main Technical Parameters

Xenon Lamp:Three 1.8KW xenon lamps(imported from America);

Filter:Daylight filter (Also can choose extended UV filter or window glass filter);

Lamp Lifetime: Near 1,500 hours;

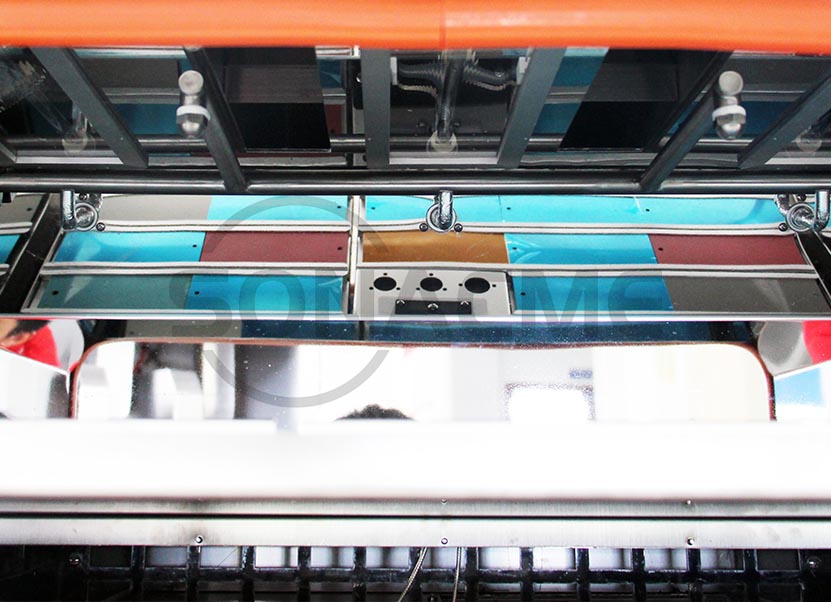

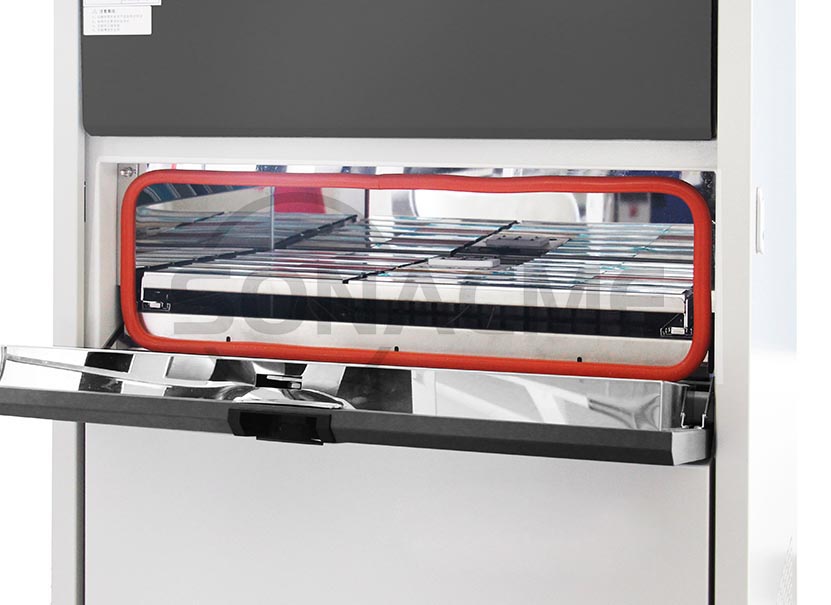

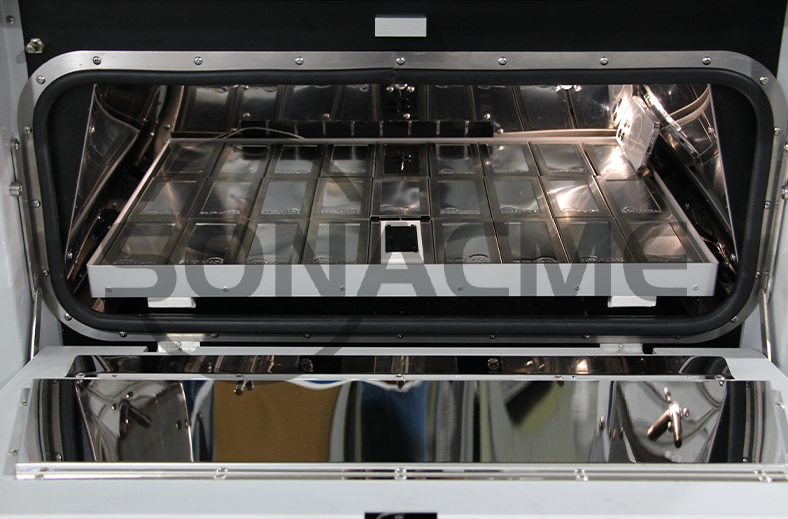

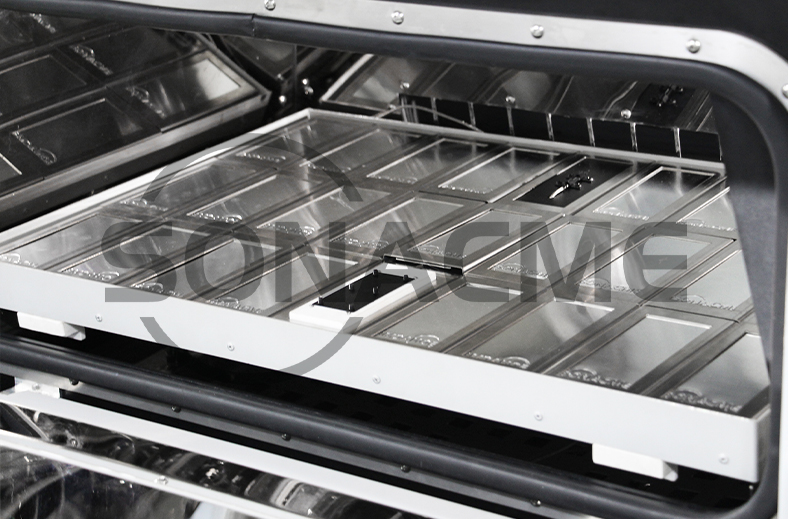

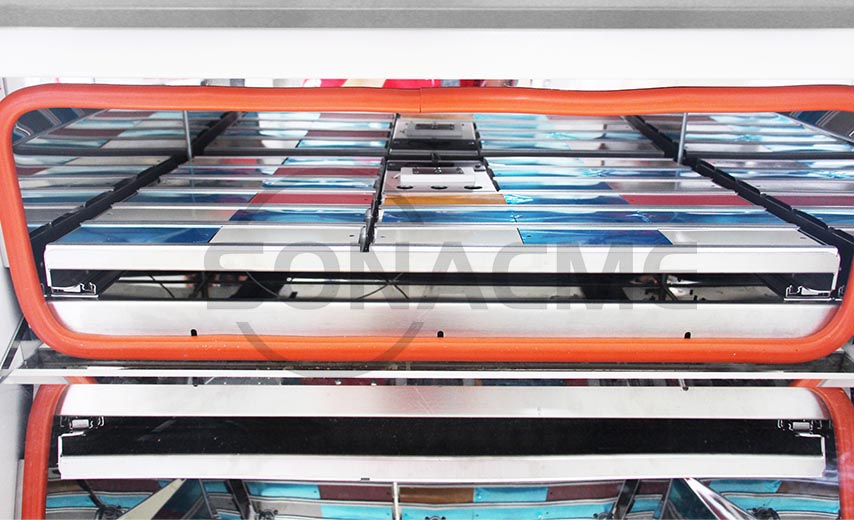

Exposure Area:2,800 cm2 (can put 27 standard samples 150mm×70mm) ;

Adjustable Irradiance Range:

0.3~1.0 W/m2 (Single point of control:340nm)

0.5~1.8 W/m2 (Single point of control:420nm)

30 W/m2~120 W/m2 (Full spectrum :from 300~400nm);

Controlling Irradiance Point:340nm or 420nm or 300nm~400nm(show at the same time);

Adjustable Black Panel Temperature Range:RT+20℃~90℃;

Adjustable relative humidity of working room:30%~75%(Light);50%~95%(Dark)


Light SourceThree 1.8KW air-cooled xenon lamps imported from the United States
Lamp Rated LifeNormal service life is about 3000 hours
Daylight filter (window glass filter or UV extension filter also available)
Effective Exposure Area2800cm2 (25 samples of 150mm×70mm can be put in at one time)
Irradiance Monitoring Method340nm or 420nm or 300nm~400nm(show at the same time)
Irradiance Setting Range30W/m2~90W/m2(300nm~400nm)or 0.3 W/m2~0.75 W/m2(@ 340nm)or 0.5 W/m2~1.35 W/m2(@ 420nm)
External Dimensions970mm×920mm×1850mm(length x width x height)
The maximum power of the whole machine6 KW
