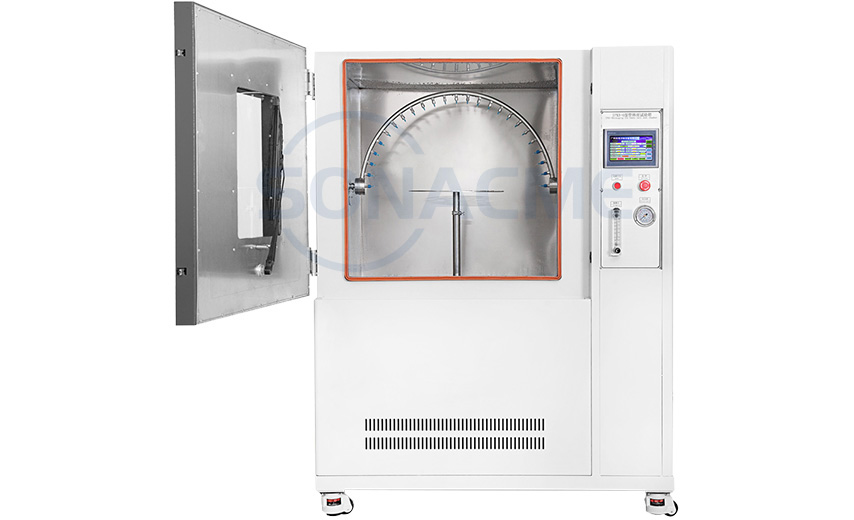

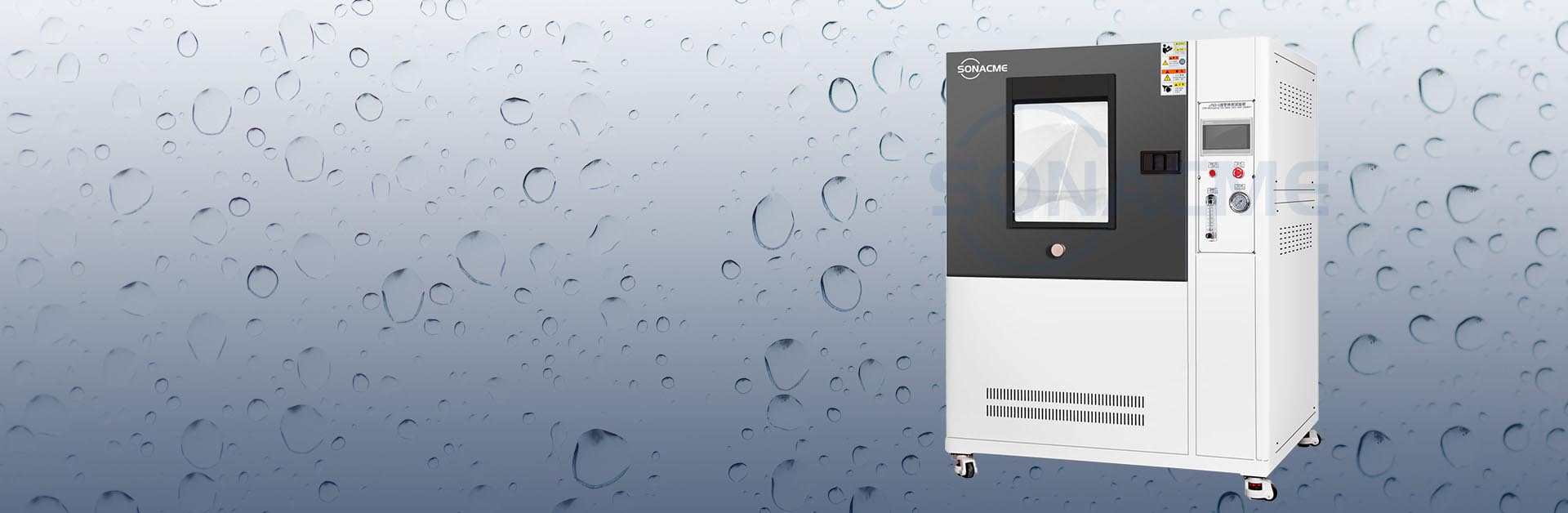

Rain Test Chamber IPX34
Rain Test Chamber IPX34
Rain Test Chamber IPX34

Waterproof Test

Application area

SONACME rain test chamber ipx34 is used to test the IPX3 and IPX4 waterproof grades of the products. The test samples include electronic components, outdoor lamps, mobile phone shells, auto parts, etc. Touch screen, new operating system, more remote operation, convenient and fast.

Comply with IEC60529:1989+A1:1999 +A2:2013 "Degrees of protection provided by enclosures(IP Code)" test standard.

Rain Test Chamber IPX34

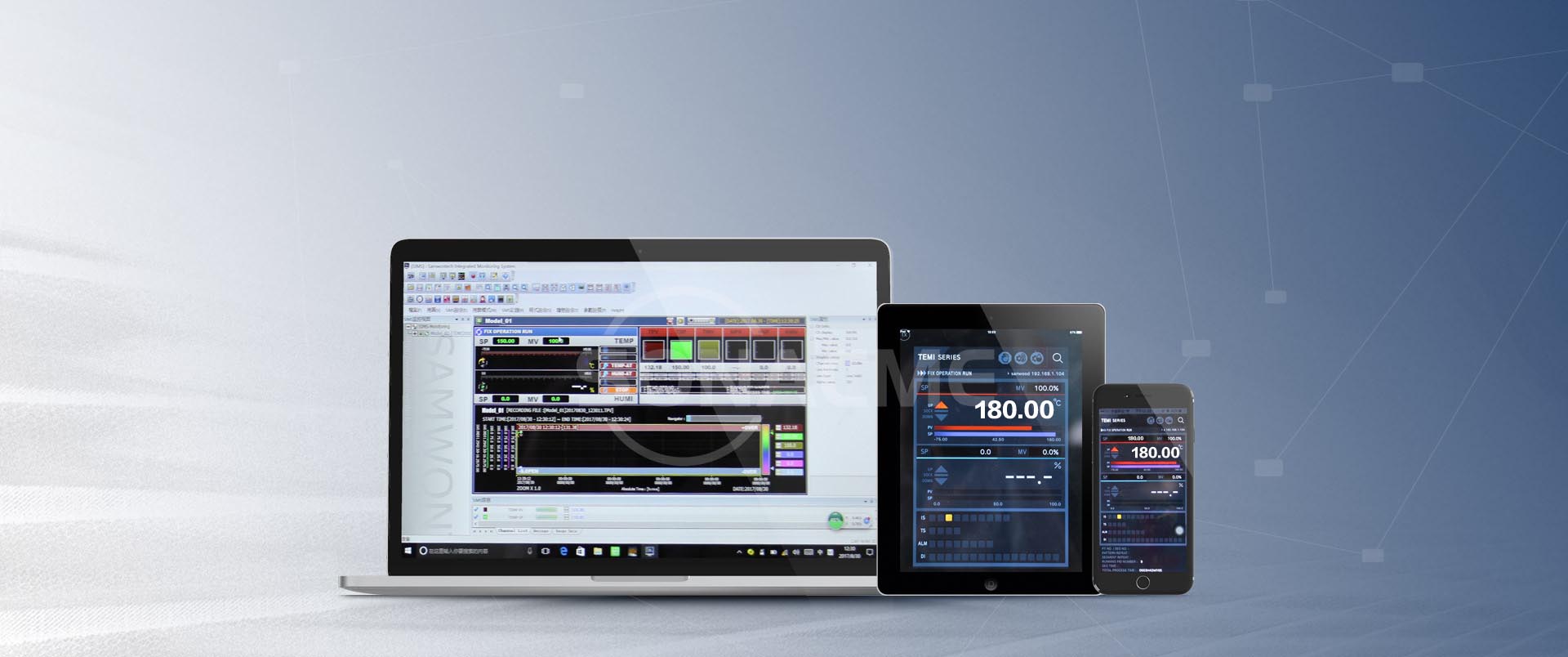

We Apply The Controller Developed By SONACME


Inner chamber material D×W×H (mm)
Outer chamber material D×W×H (mm)1200*1450*1800
Radius of Water spraying ring 400mm
Swing amplitude ±45°、±60°、±90°、±180° (theoretical value)
Rotating speed 1r/min can also be used for speed regulation without joints
Water pipe diameter φ18mm
Nozzle hole diameter φ0.4mm
Aperture spacing 50mm
Power supply2.5(KW)
