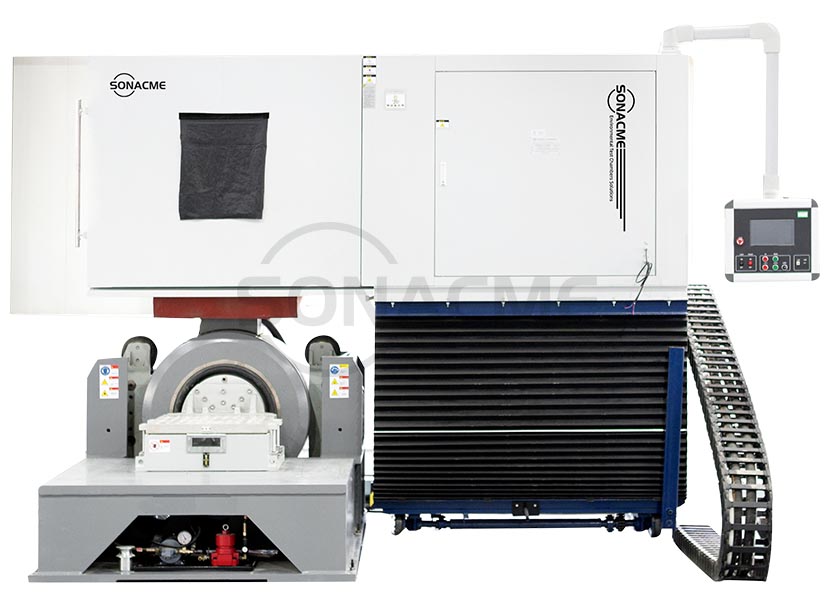

Temperature Vibration Test Chamber
Temperature Vibration Test Chamber
Temperature Vibration Test Chamber

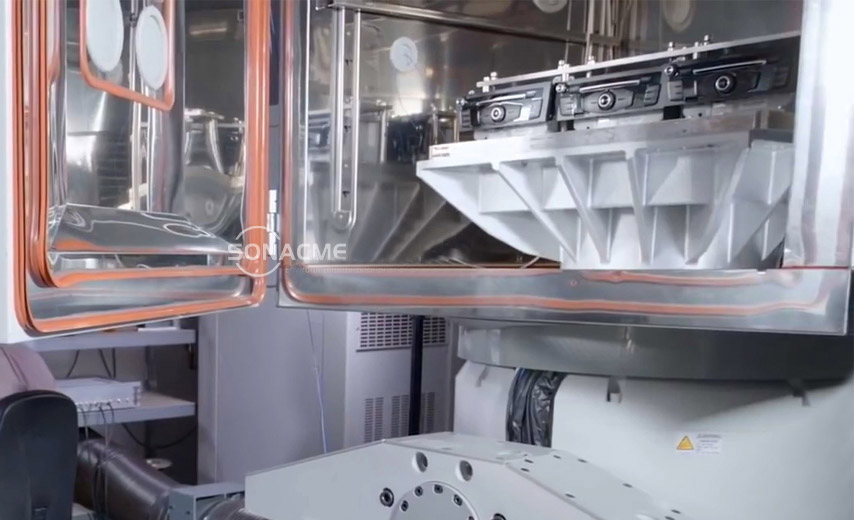

Temperature Humidity Vibration Testing

Application Area

The AGREE test chamber can simulate the changes and damages of the three physical quantities of temperature, humidity and vibration to the product in the natural environment. The reliability of the product and the adaptability to the environment have been evaluated, so it can perform temperature and humidity changes and random vibration at the same time. Find out the limit points and product defects of the product.

AGREE test chamber can test aviation, military products, vehicles, and electronic high-tech product test equipment. The combined constant temperature and humidity test box can make your quality reliability test closer to the test in the real environment.

Vibration testing machine control system capabilities: linear, logarithmic, and double frequency sweep.

Testing Standards

In addition to the fixed-point temperature and humidity conditions, the AGREE test chamber can perform condensation and damp freezing tests (alternating combined damp heat cycles) required by outdoor electronic products and car regulations to cause condensation (condensation) on the surface of the test product. Simulating outdoor condensation, evaluating the ability of materials to prevent water vapor diffusion, and damp freezing tests accelerate the product's resistance to deterioration.Condensation [Alternating Humid Heat Cycle]

EC60068-2-30、GJB150-09、JPCA-ET05、GB2423.4。

Wet freezing [low temperature cycle]

IEC60068-2-38MIL-STD-202-106AECQ-200JPCA-ET06 \nJIS 5016-9.4GB2423.34

Temperature Vibration Test Chamber
Temperature Vibration Test Chamber

Structural Features

The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.

The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.

The insulation material is made of polyurethane foam with thicknessof 100mm.

The door seal adopts double silicon rubber sealing material.

The observation window is 4 layers of tempered glass, the size you can choose by yourself.

In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.

Temperature Vibration Test Chamber

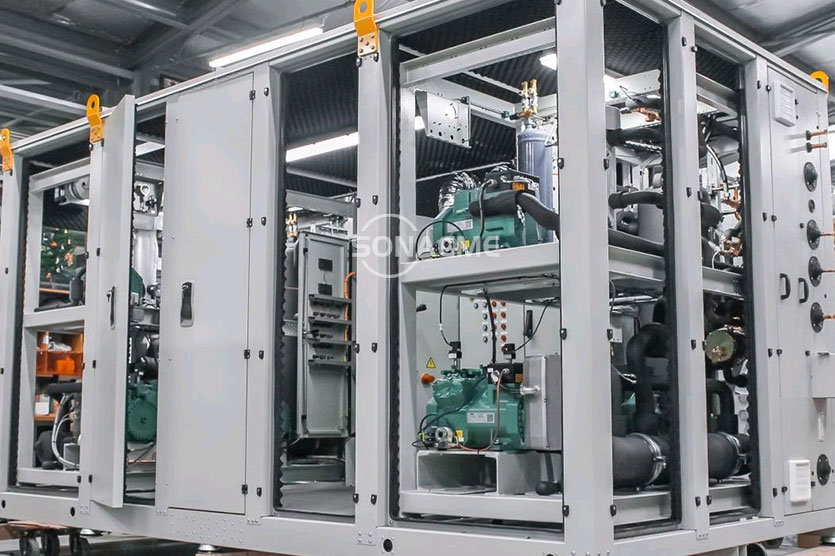

Refrigeration System

Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).

Shock absorption and noise reduction process,slow down the vibration, protect the compressor.

The new pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.

It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.

MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.

Temperature Vibration Test Chamber

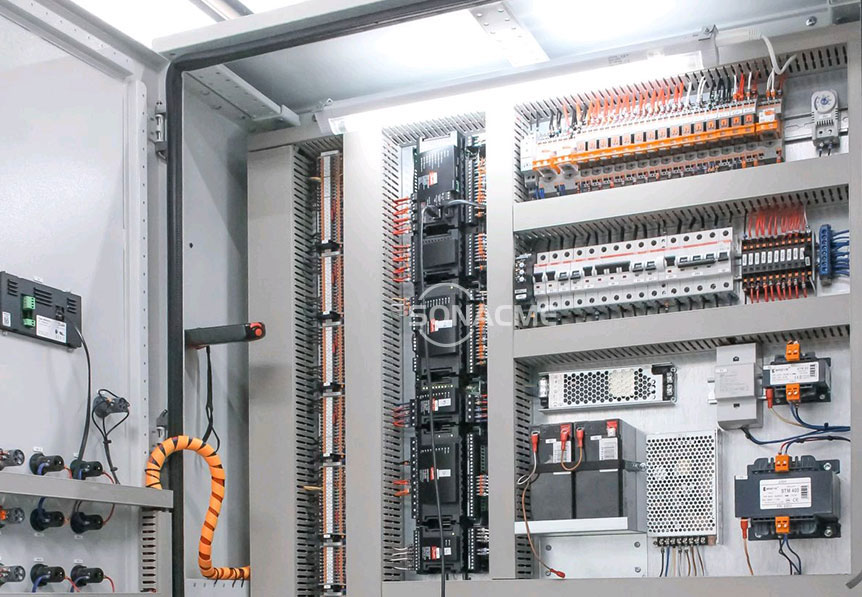

Electrical System

The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.

We use electrical components of world famous brands, such as Schneider from France, Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Temperature Vibration Test Chamber

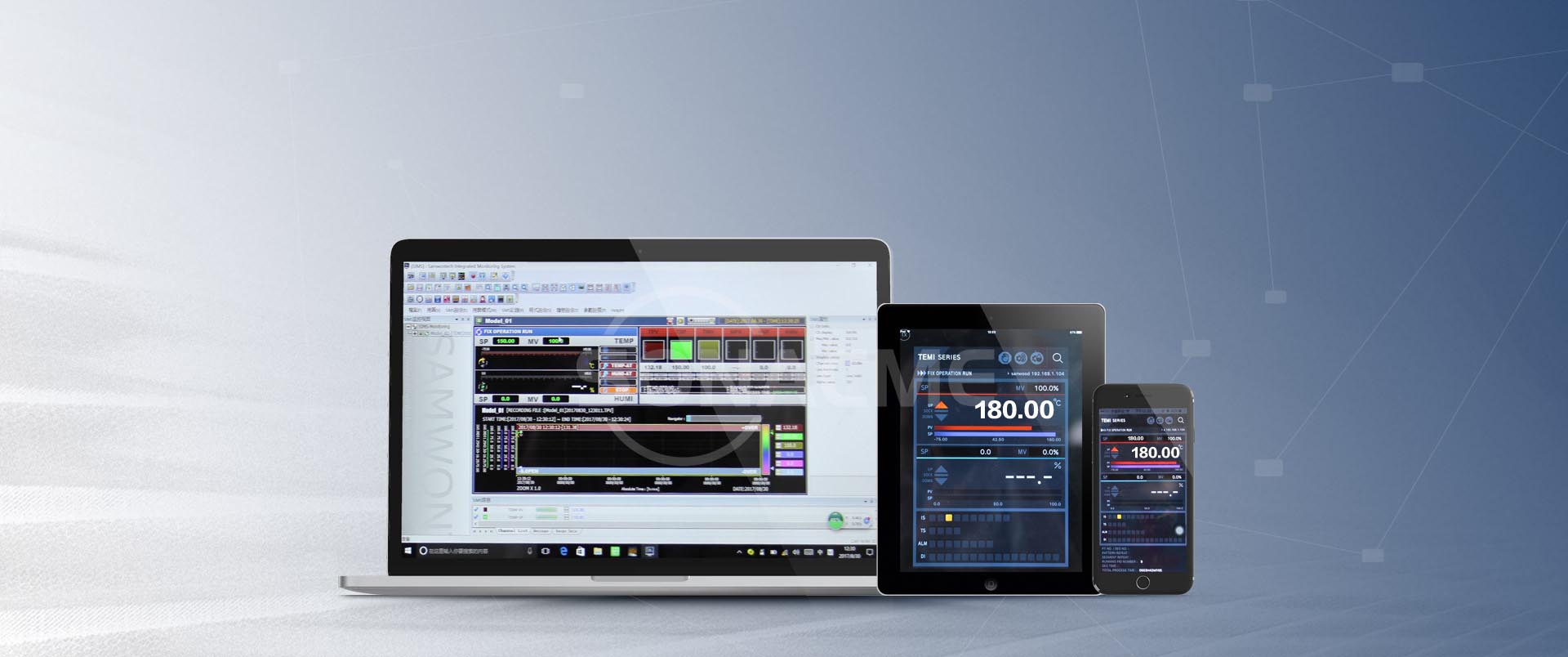

We Apply The Controller Developed By SONACME

Specifications


ModelSA/500/70(H) SA/1000/70(HSA/1700/70(H)SA/3400/70(H)
Volume 500L1000L1700L3400L
Internal dimensions  W×H×Dmm800*800*8001000*1000*10001200*1200*12001500*1500*1500
Temperature&Humidity range -70~+100℃ (+150℃/+180℃)  / 20~95%rh
Temperature&Humidity fluctuation±0.5°C / ±2.0%rh
Temperature uniformity1.5°C
Temperature change rateHeating rate:3.0°C/min     Cooling rate:2.0°C/min
Power supply380V AC  50/60Hz
ControllerStandard: SONACME
