Xenon arc Weathering Testing

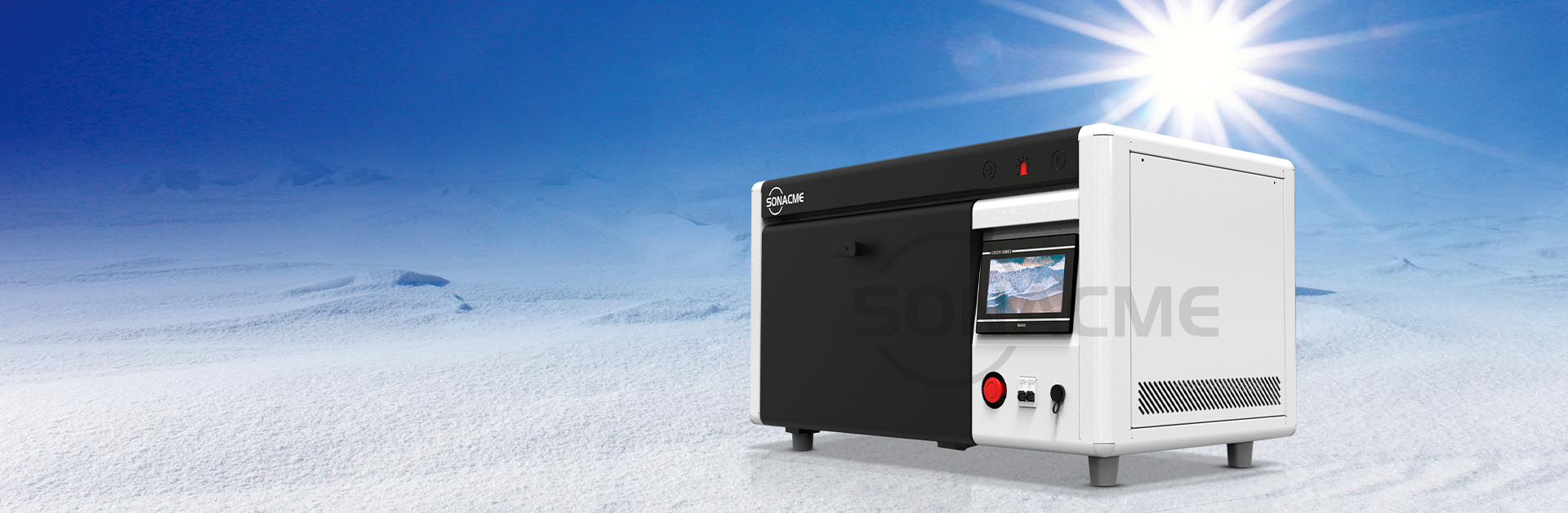

The Bench-top Xenon lamp aging test chamber is a small, simple and economical xenon lamp aging test chamber. It uses a low-power air-cooled xenon lamp and a mirror reflection system to ensure that the radiation energy in the working room is large enough and evenly distributed . It is equipped with an ultraviolet extension filter as standard, which allows ultraviolet light below the cut-off point of natural sunlight to pass (equivalent to sunlight without the atmosphere), which is used to provide faster and more severe test conditions for accelerated aging in artificial climate test.

The operator can arbitrarily set various parameters (irradiation energy, irradiation time, blackboard temperature, etc.) required for the test through the man-machine interface, and can check the operating status of the machine at any time. The operating parameters during the test can be directly passed through the USB interface download to computer.

Main Performance Characteristics

The xenon lamp light source that conforms to the international standard simulates the full-spectrum sunlight more realistically and best, and the stable light source ensures the comparability and reproducibility of the test data.

Fully automatic control of irradiation energy (closed-loop control system is more accurate and stable), which can automatically compensate for changes in irradiation energy caused by lamp aging and any other reasons, and has a wide controllable range.

The xenon lamp has a service life of up to 1500 hours and is low in price. The replacement cost is only one-fifth of the imported; the lamp tube is easy to replace.

A variety of optical filters are available to meet multiple domestic and foreign testing standards.

Alarm protection function: over-temperature, large irradiance error, and shutdown protection when the door is opened.

Bench-top Xenon test chamber
Bench-top Xenon test chamber

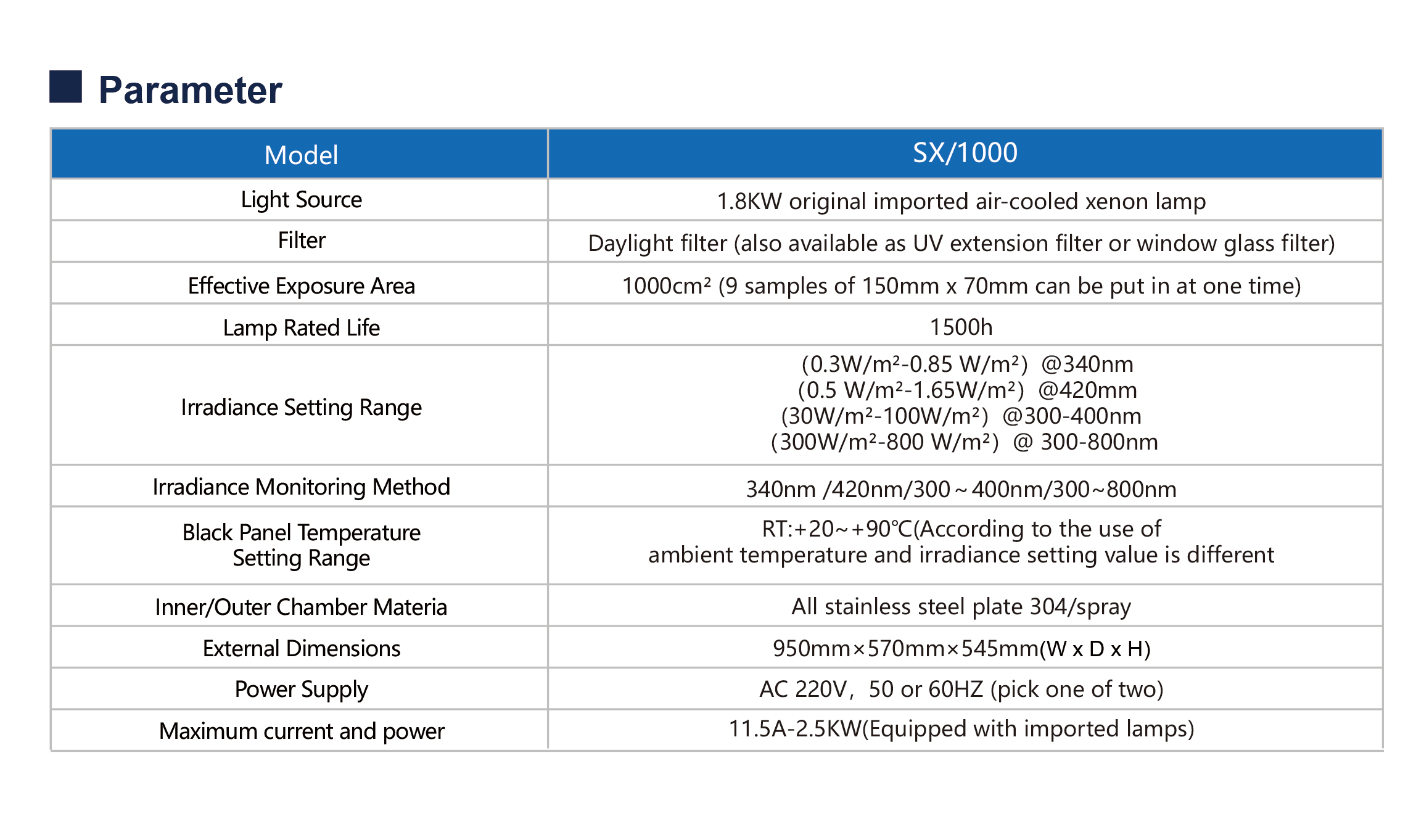

Main Technical Parameters

Light source: 1.8KW imported air-cooled xenon lamp or 1.8KW domestic xenon lamp (normal service life is about 1500 hours);

Filter: UV extended filter (daylight filter or window glass filter can also be used);

Effective exposure area: 1000cm² (9 samples of 150×70mm can be put in one time);

Irradiance monitoring method: 340nm or 420nm or 300nm~400nm (choose one before ordering);

Irradiance setting range: 30W/m²~100W/m² (300nm~400nm) or 0.3 W/m²~0.8 W/m² (@ 340nm) or 0.5 W/m²~1.5 W/m² (@ 420nm);

Blackboard temperature setting range: room temperature +20℃~90℃ (different according to the use environment temperature and irradiance setting value).

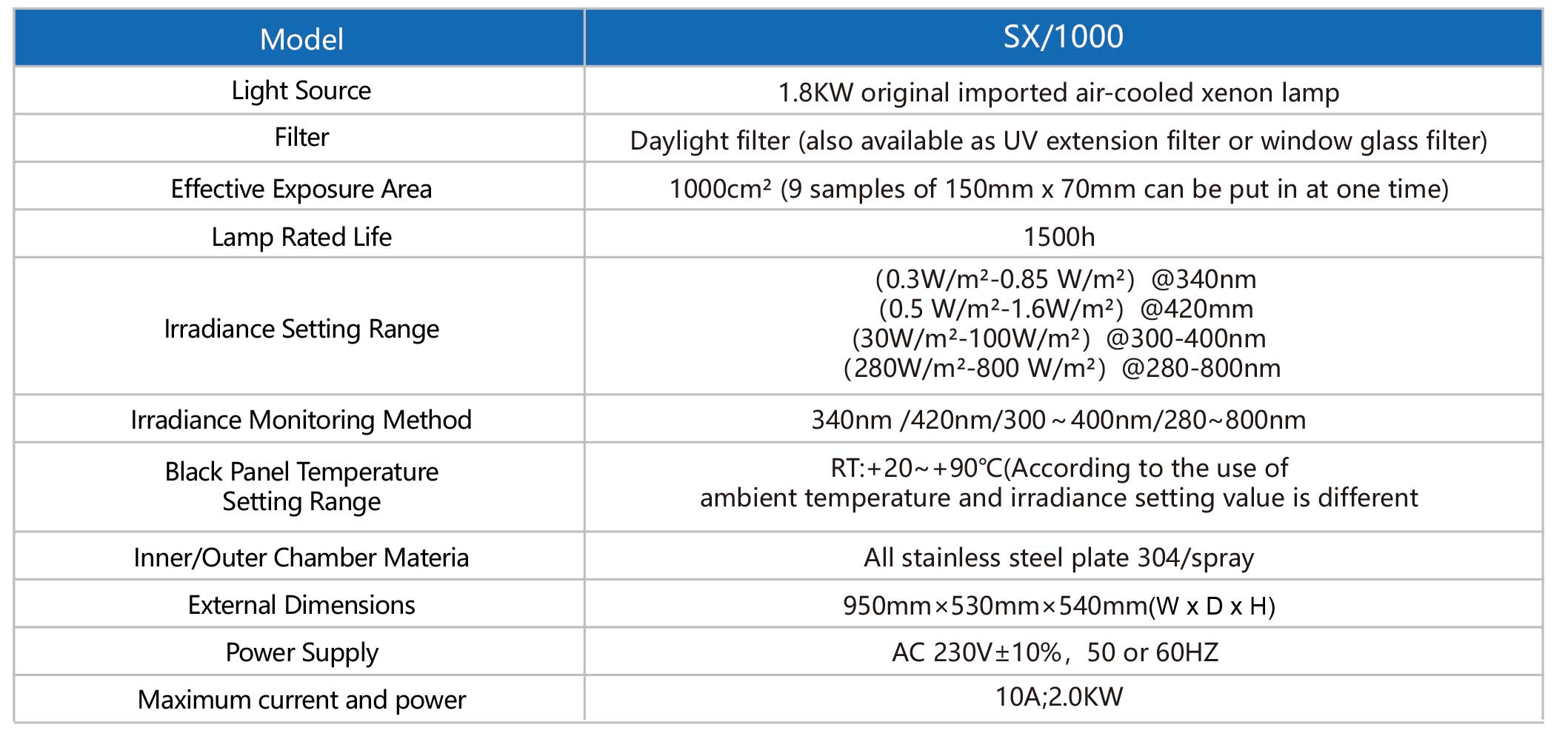

Bench-top Xenon test chamber

We Apply The Controller Developed By SONACME


Light Source1.8kW original imported air-cooled xenon lamp or 1.8KW domestic xenon lamp
FilterUV extension filter (also available as daylight filter or window glass filter)
Effective Exposure Area1000cm²(9 samples of 150mm×70mm can be put in at one time)
Lamp Rated Life1500h
Irradiance Setting Range30W/m²~100W/m²(300nm~400nm)or 0.3 W/m²~0.8 W/m²(@ 340nm)or 0.5 W/m²~1.5 W/m²(@ 420nm)
Irradiance Monitoring Method340nm or 420nm or 300nm~400nm(Choose one before ordering)
External Dimensions950mm×570mm×540mm(length x width x height)
