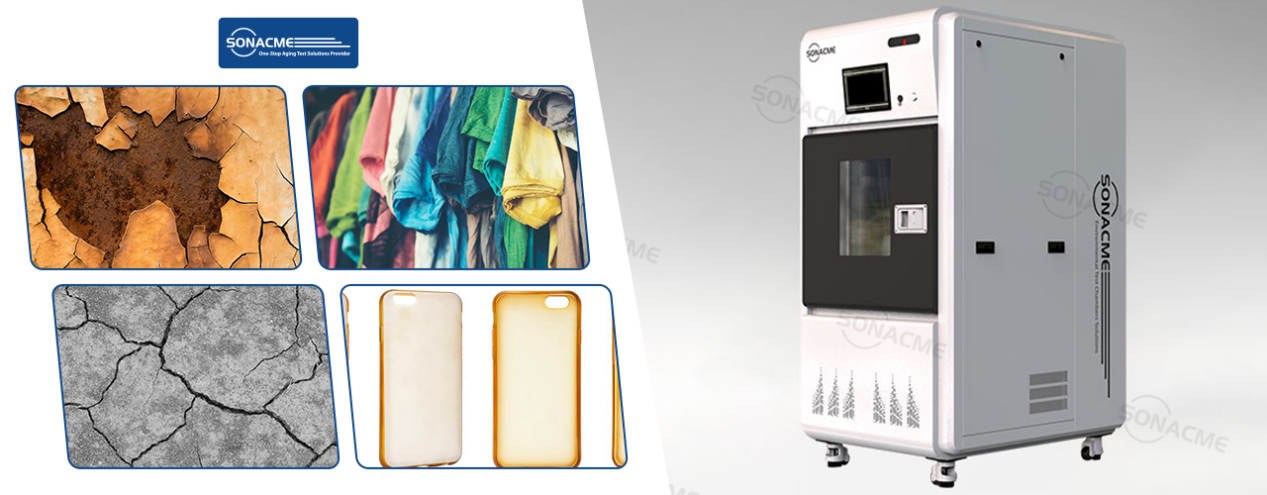

Have you ever paid attention to the fading and performance degradation of automotive coatings, outdoor building materials or plastic products under long-term exposure to sunlight? The large-scale xenon lamp aging test chamber developed by SONACME Technology can accelerate the assessment of the weather resistance performance of products by precisely simulating the solar spectrum and temperature and humidity environment, providing a scientific basis for your quality control. Whether it is material research and development or finished product inspection, the large xenon lamp aging test chamber of SONACME Technology can help you predict the product life in advance and ensure its stability and reliability in real environments.
Core Advantages of the Equipment: Precise Simulation and Efficient Testing
The large-scale xenon lamp aging test chamber of SONACME Technology adopts full-spectrum xenon lamp technology, which can precisely reproduce the ultraviolet, visible light and infrared bands of sunlight. Combined with temperature and humidity cycle control, it simulates different climate conditions around the world. The equipment supports multiple international testing standards (such as ISO 4892, ASTM G155), and is equipped with an intelligent data acquisition system that records the changes of key indicators such as material color difference, gloss, and mechanical properties in real time, significantly shortening the testing cycle.
Multi-Industry Applications: Full Coverage from Automobiles to Building Materials
Automotive industry: Evaluate the UV aging resistance of car paint and interior materials to prevent fading and cracking caused by long-term exposure to the sun.
Building materials: Test the weather resistance of exterior wall coatings and plastic-steel doors and Windows to ensure their stable performance under extreme weather conditions.
Plastic products: Simulate the embrittlement and deformation trends of plastic parts in outdoor environments and optimize material formulas.
Key Technical Parameters of SONACME Technology's Large Xenon Lamp Aging Test Chamber
Light source: 6.5KW water-cooled xenon lamp imported from the United States
Effective exposure area: 6500cm ² (Can expose 63 to 65 standard samples of 150mmx70mm at one time)
Xenon lamp spectral wavelength: Optional 300-800nm(simulating sunlight, filtering out all wavelengths below 300nm) or 280-800nm(enhancing the ultraviolet band, retaining a portion of short-wave ultraviolet rays)
Irradiance adjustable range: 30W/ m ² to 150W/ m ² (full spectrum 300-400nm) or 0.3W/ m ² to 1.5W/ m ² @340nm or 0.5W/ m ² to 2.7 W/M2@420nm.
The service life of the lamp tube: 2000 hours
SONACME Technology is a national high-tech enterprise specializing in the research and development and manufacturing of environmental simulation test equipment. Its products include xenon lamp aging test chambers, Temperature Humidity Test Chambers, Battery Test Chambers,Thermal Shock Chambers, Altitude Training Systems are key tools for enhancing the weather resistance of products.
With advanced technology and rich industry experience, SONACME Technology continuously provides customers with high-precision and highly reliable testing solutions. For more technical details about xenon lamp aging test chambers or to obtain customized solutions, please feel free to contact the SONACME Technology team!
